Macam-Macam Diagram UML (Unified Modelling Language)

  • oleh
  • Maret 22, 2021Maret 22, 2021

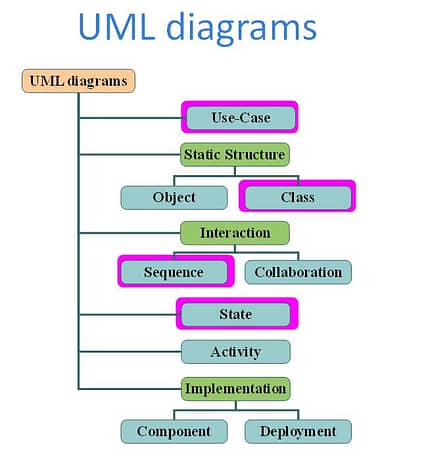

Berikut ini adalah contoh dari Diagram UML (Unified Modelling Language).

Keterangan Dari Diagram UML

  • Use-Case (relation of actors to system functions)
  • Class (static class structure)
  • Object (same as class – only using class instances – i.e. objects)
  • State (states of objects in a particular class)
  • Sequence (Object message passing structure)
  • Collaboration (same as sequence but also shows context – i.e. objects and their relationships)
  • Activity (sequential flow of activities i.e. action states)
  • Component(code structure)
  • Deployment (mapping of software to hardware)

Filosofi diagram UML :

  • Menggambarkan konsep
    • Dalam bentuk simbol
  • Menggambarkan hubungan/relasi antar konsep
    • Berupa garis
  • Menggambarkan nama
    • Label dibawah atau samping suatu simbol dan garis

Macam-Macam Diagram UML

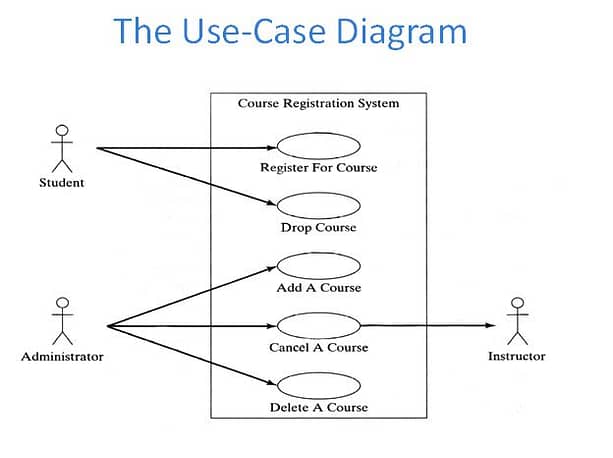

1 . Diagram Use-Case

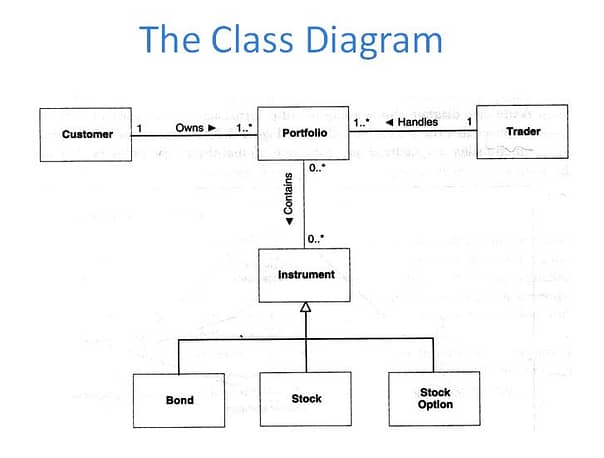

2. Diagram Class

3. Diagram Sequence

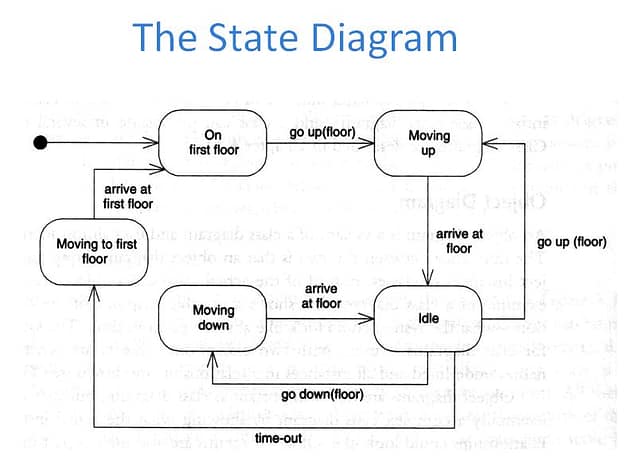

4. Diagram State
